[ESXi] 升級 VMware ESXi 5.0 到 5.1

[ESXi] 升級 VMware ESXi 5.0 到 5.1

因為專案的需求,想要在 ESXi 裡面再裝 virtualbox,

也就是所謂的 nested vm 功能~

如果在 virtualbox 中安裝的是 32-bit 的作業系統,基本上沒有問題,

但如果是 64-bit 的機器的話,就會發現那個 virtualbox 中的虛擬機器好像不認為自己是 64-bit CPU,

而導致無法安裝 64-bit 的作業系統…



VMware 在 5.0 的時候用隱藏功能的方式支援了 64-bit nested vm,

而在 5.1 的時候就變成正式支援了,因此今天就先來試一下升級 ESXi 吧~~



1. 首先將 ESXi 上的電腦全部關機後,按右鍵選 Enter Maintenance Mode 進入維護模式~

upgrade_esxi0000

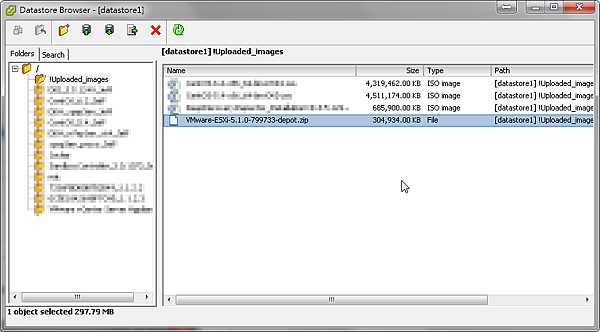

2. 接著將升級的檔案上傳到 ESXi 的 datastore 上面~

upgrade_esxi0003



3. 接著要開啟 ESXi 上的 SSH 服務~

先選擇 Configuration > Software > Security Profile > Properties ,選 SSH > Options,

再按下 Start 啟動 SSH 服務~

upgrade_esxi0001

upgrade_esxi0002



4. 使用 putty 之類的 SSH 工具連到 ESXi 機器,

接著執行下列的指令,注意 zip 檔的路徑需依據你上傳到 datastore 的位置而定:

esxcli software vib install -d  “/vmfs/volumes/datastore1/_Uploaded_images/VMware-ESXi-5.1.0-799733-depot.zip”



下面是在我的機器上執行的結果:

/ # esxcli software vib install -d  “/vmfs/volumes/datastore1/_Uploaded_images/VMware-ESXi-5.1.0-799733-depot.zip”
Installation Result
   Message: The update completed successfully, but the system needs to be rebooted for the changes to be effective.
   Reboot Required: true
   VIBs Installed: VMware_bootbank_ata-pata-amd_0.3.10-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-atiixp_0.4.6-4vmw.510.0.0.799733, VMware_bootbank_ata-pata-cmd64x_0.2.5-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-hpt3x2n_0.3.4-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-pdc2027x_1.0-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-serverworks_0.4.3-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-sil680_0.4.8-3vmw.510.0.0.799733, VMware_bootbank_ata-pata-via_0.3.3-2vmw.510.0.0.799733, VMware_bootbank_block-cciss_3.6.14-10vmw.510.0.0.799733, VMware_bootbank_ehci-ehci-hcd_1.0-3vmw.510.0.0.799733, VMware_bootbank_esx-base_5.1.0-0.0.799733, VMware_bootbank_esx-dvfilter-generic-fastpath_5.1.0-0.0.799733, VMware_bootbank_esx-tboot_5.1.0-0.0.799733, VMware_bootbank_esx-xlibs_5.1.0-0.0.799733, VMware_bootbank_esx-xserver_5.1.0-0.0.799733, VMware_bootbank_ima-qla4xxx_2.01.31-1vmw.510.0.0.799733, VMware_bootbank_ipmi-ipmi-devintf_39.1-4vmw.510.0.0.799733, VMware_bootbank_ipmi-ipmi-msghandler_39.1-4vmw.510.0.0.799733, VMware_bootbank_ipmi-ipmi-si-drv_39.1-4vmw.510.0.0.799733, VMware_bootbank_misc-cnic-register_1.1-1vmw.510.0.0.799733, VMware_bootbank_misc-drivers_5.1.0-0.0.799733, VMware_bootbank_net-be2net_4.1.255.11-1vmw.510.0.0.799733, VMware_bootbank_net-bnx2_2.0.15g.v50.11-7vmw.510.0.0.799733, VMware_bootbank_net-bnx2x_1.61.15.v50.3-1vmw.510.0.0.799733, VMware_bootbank_net-cnic_1.10.2j.v50.7-3vmw.510.0.0.799733, VMware_bootbank_net-e1000_8.0.3.1-2vmw.510.0.0.799733, VMware_bootbank_net-e1000e_1.1.2-3vmw.510.0.0.799733, VMware_bootbank_net-enic_1.4.2.15a-1vmw.510.0.0.799733, VMware_bootbank_net-forcedeth_0.61-2vmw.510.0.0.799733, VMware_bootbank_net-igb_2.1.11.1-3vmw.510.0.0.799733, VMware_bootbank_net-ixgbe_3.7.13.6iov-10vmw.510.0.0.799733, VMware_bootbank_net-nx-nic_4.0.558-3vmw.510.0.0.799733, VMware_bootbank_net-r8168_8.013.00-3vmw.510.0.0.799733, VMware_bootbank_net-r8169_6.011.00-2vmw.510.0.0.799733, VMware_bootbank_net-s2io_2.1.4.13427-3vmw.510.0.0.799733, VMware_bootbank_net-sky2_1.20-2vmw.510.0.0.799733, VMware_bootbank_net-tg3_3.110h.v50.4-4vmw.510.0.0.799733, VMware_bootbank_net-vmxnet3_1.1.3.0-3vmw.510.0.0.799733, VMware_bootbank_ohci-usb-ohci_1.0-3vmw.510.0.0.799733, VMware_bootbank_sata-ahci_3.0-13vmw.510.0.0.799733, VMware_bootbank_sata-ata-piix_2.12-6vmw.510.0.0.799733, VMware_bootbank_sata-sata-nv_3.5-4vmw.510.0.0.799733, VMware_bootbank_sata-sata-promise_2.12-3vmw.510.0.0.799733, VMware_bootbank_sata-sata-sil24_1.1-1vmw.510.0.0.799733, VMware_bootbank_sata-sata-sil_2.3-4vmw.510.0.0.799733, VMware_bootbank_sata-sata-svw_2.3-3vmw.510.0.0.799733, VMware_bootbank_scsi-aacraid_1.1.5.1-9vmw.510.0.0.799733, VMware_bootbank_scsi-adp94xx_1.0.8.12-6vmw.510.0.0.799733, VMware_bootbank_scsi-aic79xx_3.1-5vmw.510.0.0.799733, VMware_bootbank_scsi-bnx2i_1.9.1d.v50.1-5vmw.510.0.0.799733, VMware_bootbank_scsi-fnic_1.5.0.3-1vmw.510.0.0.799733, VMware_bootbank_scsi-hpsa_5.0.0-21vmw.510.0.0.799733, VMware_bootbank_scsi-ips_7.12.05-4vmw.510.0.0.799733, VMware_bootbank_scsi-lpfc820_8.2.3.1-127vmw.510.0.0.799733, VMware_bootbank_scsi-megaraid-mbox_2.20.5.1-6vmw.510.0.0.799733, VMware_bootbank_scsi-megaraid-sas_5.34-4vmw.510.0.0.799733, VMware_bootbank_scsi-megaraid2_2.00.4-9vmw.510.0.0.799733, VMware_bootbank_scsi-mpt2sas_10.00.00.00-5vmw.510.0.0.799733, VMware_bootbank_scsi-mptsas_4.23.01.00-6vmw.510.0.0.799733, VMware_bootbank_scsi-mptspi_4.23.01.00-6vmw.510.0.0.799733, VMware_bootbank_scsi-qla2xxx_902.k1.1-9vmw.510.0.0.799733, VMware_bootbank_scsi-qla4xxx_5.01.03.2-4vmw.510.0.0.799733, VMware_bootbank_scsi-rste_2.0.2.0088-1vmw.510.0.0.799733, VMware_bootbank_uhci-usb-uhci_1.0-3vmw.510.0.0.799733, VMware_locker_tools-light_5.1.0-0.0.799733
   VIBs Removed: VMware_bootbank_ata-pata-amd_0.3.10-3vmw.500.0.0.469512, VMware_bootbank_ata-pata-atiixp_0.4.6-3vmw.500.0.0.469512, VMware_bootbank_ata-pata-cmd64x_0.2.5-3vmw.500.0.0.469512, VMware_bootbank_ata-pata-hpt3x2n_0.3.4-3vmw.500.0.0.469512, VMware_bootbank_ata-pata-pdc2027x_1.0-3vmw.500.0.0.469512, VMware_bootbank_ata-pata-serverworks_0.4.3-3vmw.500.0.0.469512, VMware_bootbank_ata-pata-sil680_0.4.8-3vmw.500.0.0.469512, VMware_bootbank_ata-pata-via_0.3.3-2vmw.500.0.0.469512, VMware_bootbank_block-cciss_3.6.14-10vmw.500.0.0.469512, VMware_bootbank_ehci-ehci-hcd_1.0-3vmw.500.1.11.623860, VMware_bootbank_esx-base_5.0.0-1.11.623860, VMware_bootbank_esx-tboot_5.0.0-0.0.469512, VMware_bootbank_ima-qla4xxx_2.01.07-1vmw.500.0.0.469512, VMware_bootbank_ipmi-ipmi-devintf_39.1-4vmw.500.0.0.469512, VMware_bootbank_ipmi-ipmi-msghandler_39.1-4vmw.500.0.0.469512, VMware_bootbank_ipmi-ipmi-si-drv_39.1-4vmw.500.0.0.469512, VMware_bootbank_misc-cnic-register_1.1-1vmw.500.0.0.469512, VMware_bootbank_misc-drivers_5.0.0-1.11.623860, VMware_bootbank_net-be2net_4.0.88.0-1vmw.500.0.7.515841, VMware_bootbank_net-bnx2_2.0.15g.v50.11-5vmw.500.0.0.469512, VMware_bootbank_net-bnx2x_1.61.15.v50.1-1vmw.500.0.0.469512, VMware_bootbank_net-cnic_1.10.2j.v50.7-2vmw.500.0.0.469512, VMware_bootbank_net-e1000_8.0.3.1-2vmw.500.0.7.515841, VMware_bootbank_net-e1000e_1.1.2-3vmw.500.1.11.623860, VMware_bootbank_net-enic_1.4.2.15a-1vmw.500.0.0.469512, VMware_bootbank_net-forcedeth_0.61-2vmw.500.0.0.469512, VMware_bootbank_net-igb_2.1.11.1-3vmw.500.0.0.469512, VMware_bootbank_net-ixgbe_2.0.84.8.2-10vmw.500.0.0.469512, VMware_bootbank_net-nx-nic_4.0.557-3vmw.500.1.11.623860, VMware_bootbank_net-r8168_8.013.00-3vmw.500.0.0.469512, VMware_bootbank_net-r8169_6.011.00-2vmw.500.0.0.469512, VMware_bootbank_net-s2io_2.1.4.13427-3vmw.500.0.0.469512, VMware_bootbank_net-sky2_1.20-2vmw.500.0.0.469512, VMware_bootbank_net-tg3_3.110h.v50.4-4vmw.500.0.0.469512, VMware_bootbank_ohci-usb-ohci_1.0-3vmw.500.0.0.469512, VMware_bootbank_sata-ahci_3.0-6vmw.500.1.11.623860, VMware_bootbank_sata-ata-piix_2.12-4vmw.500.1.11.623860, VMware_bootbank_sata-sata-nv_3.5-3vmw.500.0.0.469512, VMware_bootbank_sata-sata-promise_2.12-3vmw.500.0.0.469512, VMware_bootbank_sata-sata-sil_2.3-3vmw.500.0.0.469512, VMware_bootbank_sata-sata-svw_2.3-3vmw.500.0.0.469512, VMware_bootbank_scsi-aacraid_1.1.5.1-9vmw.500.1.11.623860, VMware_bootbank_scsi-adp94xx_1.0.8.12-6vmw.500.0.0.469512, VMware_bootbank_scsi-aic79xx_3.1-5vmw.500.0.0.469512, VMware_bootbank_scsi-bnx2i_1.9.1d.v50.1-3vmw.500.0.0.469512, VMware_bootbank_scsi-fnic_1.5.0.3-1vmw.500.0.0.469512, VMware_bootbank_scsi-hpsa_5.0.0-17vmw.500.0.0.469512, VMware_bootbank_scsi-ips_7.12.05-4vmw.500.0.0.469512, VMware_bootbank_scsi-lpfc820_8.2.2.1-18vmw.500.0.0.469512, VMware_bootbank_scsi-megaraid-mbox_2.20.5.1-6vmw.500.0.0.469512, VMware_bootbank_scsi-megaraid-sas_5.34-1vmw.500.1.11.623860, VMware_bootbank_scsi-megaraid2_2.00.4-9vmw.500.0.0.469512, VMware_bootbank_scsi-mpt2sas_06.00.00.00-6vmw.500.1.11.623860, VMware_bootbank_scsi-mptsas_4.23.01.00-5vmw.500.0.0.469512, VMware_bootbank_scsi-mptspi_4.23.01.00-5vmw.500.0.0.469512, VMware_bootbank_scsi-qla2xxx_901.k1.1-14vmw.500.0.0.469512, VMware_bootbank_scsi-qla4xxx_5.01.03.2-3vmw.500.0.0.469512, VMware_bootbank_scsi-rste_2.0.2.0088-1vmw.500.1.11.623860, VMware_bootbank_uhci-usb-uhci_1.0-3vmw.500.0.0.469512, VMware_locker_tools-light_5.0.0-1.11.623860
   VIBs Skipped:




5. 將 ESXi 重開機後,讓 vSphere client 重新連到 ESXi,

就可以確認版本已經升級成 5.1 囉~~

記得這時候可以再按右鍵 Exit Maintenance Mode 離開維護模式了~~

upgrade_esxi0004









//
//
